Truck Water Pump Failure: Typical Symptoms

‌

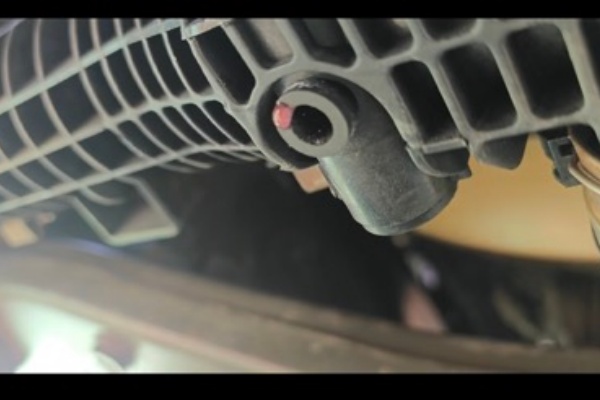

Coolant leakage from one truck

‌1. Coolant Leakage — The Most Obvious Early Sign‌

· ‌Leakage Locations‌: Around the pump housing and engine interface, near the vent hole, often accompanied by ‌light green, red, or orange‌ coolant stains.

· ‌Manifestations‌:

· Wet spots or drips beneath the engine compartment, especially noticeable after parking.

· Continuous drop in coolant level despite no external hose leaks.

· Leaking fluid washes away bearing lubricant, accelerating ‌bearing wear‌, creating a vicious cycle: leakage → wear → failure.

· ‌Risk Alert‌: Failure to address promptly leads to insufficient coolant, causing engine overheating and potentially severe damage such as cylinder deformation or head gasket blowout.

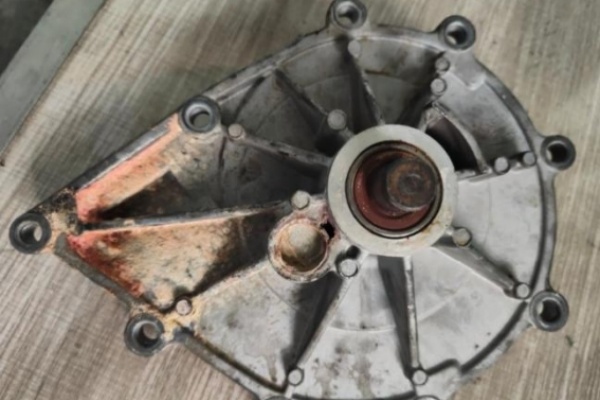

One defective water pump caused by coolant leakage

‌2. Unusual Mechanical Noise — Alarm of Internal Component Instability‌

· ‌Bearing Wear Sound‌: A continuous low-frequency "‌humming‌" or "‌rustling‌" noise, resembling metal friction, most audible at idle.

· ‌Impeller Looseness Sound‌: Intermittent "‌tapping‌" sounds caused by impeller collision with the pump housing, increasing in frequency with RPM.

· ‌Diagnostic Tip‌: Use a long screwdriver to press against the pump housing; place your ear on the handle to amplify the noise and distinguish it from belt or tensioner sounds.

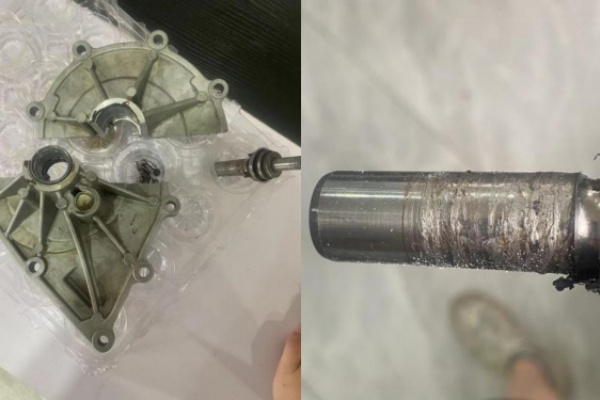

Bearing Failure

‌3. Abnormal Engine Temperature Rise — A Direct Consequence of Core Function Failure‌

· ‌Instrument Indication‌: The temperature gauge rapidly climbs into the ‌red zone‌, with the high-temperature warning light illuminates.

· ‌Physical Phenomena‌:

· Coolant "‌boiling over‌" (overflow caused by vaporization).

· The Cooling fan runs at maximum speed but fails to reduce the temperature.

· ‌Root Cause‌: Pump failure disrupts coolant circulation, preventing heat dissipation from the engine block and leading to ‌thermal self-destruction.

‌4. Idle Instability and RPM Fluctuation — A Chain Reaction from Power Transmission Interference‌

· ‌Symptoms‌:

· The Engine RPM ‌irregularly fluctuates‌ after startup (e.g., 600rpm → 900rpm → 500rpm) .

· Occasional ‌stalling‌ at low speeds, which worsens when the air conditioning is on or the engine is under load.

· ‌Mechanism‌: The water pump is driven by a belt connected to the crankshaft. Internal bearing seizure or increased impeller resistance ‌impedes belt movement‌, disrupting smooth rotation of the crankshaft.

‌5. Abnormal Coolant Consumption — A Comprehensive Indicator of Hidden Failures‌

· ‌Abnormal Consumption Signs‌:

· Coolant was refilled every ‌500–1,000 km‌ even if no visible external leaks were present.

· White vapor emerging from the exhaust (not normal condensation) suggests coolant leakage into combustion chambers.

· ‌Deeper Risk‌: May indicate a ‌cracked cylinder head or block‌; requires further diagnosis through cylinder compression testing.

(Above Source from TruckPartsFirst.com)
