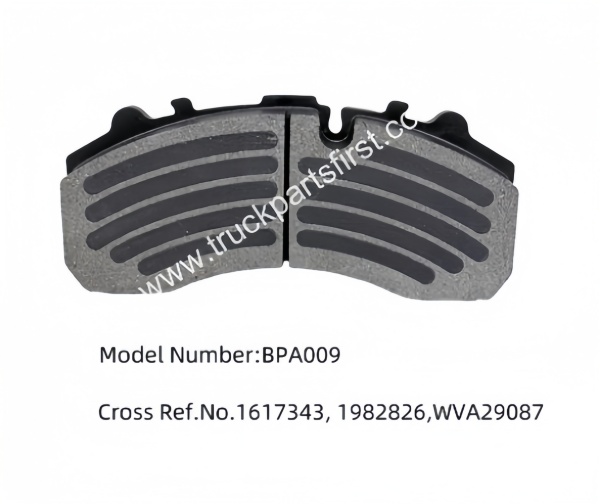

How to Properly Install Truck Brake Pads

 Truck Brake Pad Installation: Key Considerations

Note: This guide is based on Chinese industry standards and adapted for Shanghai's humid climate.

I. Pre-Installation Preparation: Compliance and Compatibility

.-Model Matching: You must use brake pads that are exactly matched to the truck type (heavy-duty, light-duty, tractor-trailer). Never substitute passenger vehicle components, as differences in caliper design and friction material formulation can significantly reduce braking performance or cause noise.

-Thickness Standards: According to the China Automotive Maintenance Industry Association, brake pads must be replaced immediately when the friction material thickness is less than or equal to 3 mm . If the thickness is between 3 and 5 mm, the inspection frequency should be increased to every 5,000 km.

-Tool Requirements: Use a torque wrench (caliper bolts typically require 30–50 N·m), a C-clamp (for piston retraction), brake cleaner, and anti-squeal lubricant. Never use engine oil on guide pins, as it loses effectiveness when exposed to moisture.

II. Installation Process: Critical Steps and Corrosion Prevention (Specific to Shanghai Humidity Conditions)

 ‌Inner vs. Outer Pad Identification‌:

-Shape Differentiation: Inner pads (facing the caliper) have a more regular contour, while outer pads (facing the wheel) often feature beveled edges or protrusions.

-‌Marking Recognition: Some backing plates are labeled “IN”/“OUT” or have arrows indicating the wheel's rotation direction. The arrow must align with the tire's rotation.

-Wear Indicator: Brake pads equipped with electronic wear sensors must be installed on the inner side. Their backing plates feature raised or recessed areas; incorrect installation will disable the alarm.

-Guide Pin Lubrication: (Mandatory in Shanghai’s High-Humidity Environment)

-‌Recommended Lubricant‌: Use water-resistant, calcium-based grease (commonly called “yellow grease”) to effectively resist rain and moisture, preventing guide pin seizure.

-Prohibited Substances: Ordinary engine oil, WD-40, or similar non-specialized lubricants should not be used, as their performance degrades rapidly when exposed to water, causing sticking.

-Procedure: Clean rust from the guide pins, then apply a thin, even layer of grease to ensure smooth movement within the caliper bracket.

-Piston Retraction: Use a dedicated C-clamp to slowly retract the brake caliper piston. Always open the brake fluid reservoir cap beforehand to prevent hydraulic backflow, fluid overflow, or air lock.

-Friction Surface Cleaning: Thoroughly clean the brake disc surface of oil and iron dust using brake cleaner. Never touch the friction surface of new pads, as skin oils or sweat can cause initial brake fade.

III. Post-Installation Inspection and Break-In Procedures

-Torque Calibration: Caliper mounting bolts must be tightened to the manufacturer-specified torque, typically between 30 and 50 N·m. Under-tightening can cause caliper misalignment, while over-tightening may damage the threads or the caliper body.

-Brake System Reset: After reinstalling the wheel, press the brake pedal 5 to 10 times before starting the engine to ensure initial contact between the brake pad and disc and to build hydraulic pressure.

-Break-In Requirements:For the first 200 to 500 kilometers, avoid hard braking, heavy-load stops, or prolonged downhill braking. Use gentle, intermittent braking to ensure an even transfer of friction material onto the disc surface.

Above Picture from www.DAF.com

IV. Humidity-Specific Protection Measures (Shanghai Region)

-Corrosion Inhibition: Apply a ceramic-based, high-temperature anti-rust coating (rated up to +1400°C) to exposed metal parts, such as caliper pistons and sliding pins, to create a protective barrier against salt spray and moisture.

-Parking Recommendations: For long-term parking, select a dry garage or fully cover the vehicle with a full-body car cover to minimize the exposure of brake discs to moisture.

-Regular Inspection: Inspect the brake system every 10,000 km or after the rainy season for rust, sticking, or unusual noises. Pay special attention to the mobility of the guide pins to prevent “single-side drag,” which can cause vehicle pulling or brake imbalance.

V. Severe Consequences of Installation Errors:

-Incorrect Installation: Installing brake pads backward results in poor friction contact, reducing braking force by over 30%, significantly increasing stopping distance, and greatly increasing the risk of rear-end collisions or other accidents.

-Lubrication Failure: Failure to lubricate properly or using an inappropriate lubricant causes uneven pad wear, deep grooves on discs, and doubles repair costs.

-Noise and Vibration: Persistent metallic scraping or pedal pulsation typically results from unclean friction surfaces, the absence of anti-squeal compound, or incomplete piston retraction.
