How does the seal determine the service life of a water pump?

We use Torch Seals, the largest seal maker for water pumps in China

The water pump seal is a critical component of the pump shaft sealing system, and its performance directly affects the pump’s service life. The following are its key functional mechanisms:

Prevention of coolant leakage‌: The seal forms a primary sealing surface by ensuring precise contact between the rotating and stationary rings, preventing high-pressure coolant from leaking along the pump shaft. Failure of this seal leads to coolant loss, which can cause engine overheating and component corrosion, thereby accelerating the overall deterioration of the pump.

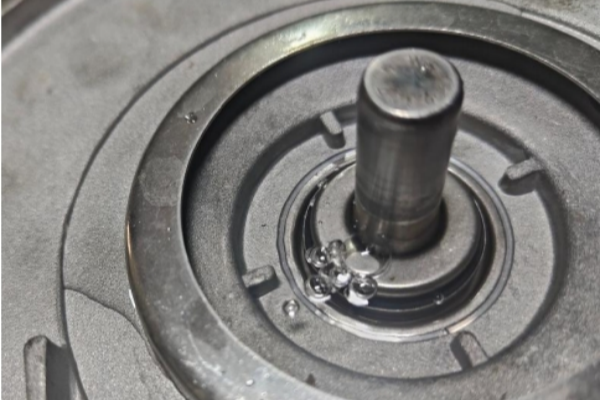

Coolant leakage from the Surface

Exclusion of air ingress‌: On the suction side, the seal acts as a liquid barrier, preventing air from entering the pump chamber and disrupting the vacuum. Air contamination leads to cavitation, which damages the impeller and flow passages.

Lubrication and cooling of sealing surfaces‌: During operation, a small amount of coolant seeps into the gap between the rotating and stationary rings, forming a lubricating film that reduces friction and heat buildup. This film prevents rapid wear of hard materials, such as silicon carbide and graphite, caused by dry rubbing.

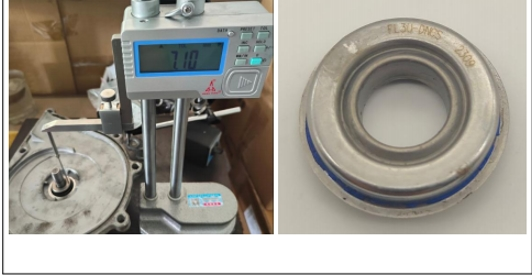

Visual Obervations on defective seal

 ‌Isolation of contaminants and corrosive media‌: A high-quality seal structure prevents particulates and acidic or alkaline substances in the coolant from contacting the shaft sleeve and bearings, thereby reducing abrasive wear and electrochemical corrosion, which extends the lifespan of critical components.

Absorption of axial vibration and misalignment‌: The spring-loaded mechanical seal design compensates for minor axial play and radial runout of the pump shaft, ensuring stable contact between the sealing faces and preventing sudden leakage caused by misalignment.

(Above Source from TruckPartsFirst.com)
