How to Properly Install a Truck Water Pump

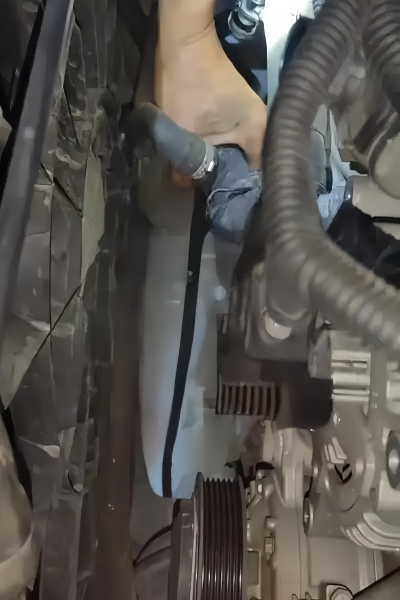

The picture is generated by Baidu AI.

The truck water pump is a critical component of the engine cooling system, and proper installation is essential for the engine's normal operation. Below are detailed precautions for installing a truck water pump:

I. Pre-Installation Preparation

--- Safety Measures‌

Ensure the vehicle is parked on flat ground with the parking brake engaged.

Wait for the engine to cool completely before proceeding.

Disconnect the battery terminals to prevent electrical shock.

--- Tool Preparation‌

Prepare professional tools such as wrenches, screwdrivers, pliers, and jacks.

Ensure the availability of the new water pump, gaskets, and sealant.

--- Failure Identification

The root cause of the water pump failure should be identified. Before replacing the water pump, inspect related components such as the radiator fan, fan clutch, pulley, belt, radiator hoses, and thermostat.

II. Key Steps During Installation

--- Removing the Old Water Pump‌

Loosen and remove the bolts securing the water pump.

Carefully disconnect the belt and hoses.

Take care not to damage the surrounding components.

--- Cleaning the Installation Area‌

Thoroughly clean the mounting surface using a clean cloth.

Check the cleanliness of the pump shaft and static ring groove.

Before replacing the automotive water pump, thoroughly clean the coolant system, including the radiator and engine. Remove any rust spots and residues, as impurities or small particles in the cooling system can cause seal wear and lead to leaks.

--- Installing New Water Pump‌

Ensure the new water pump model matches the original one.

When installing the water pump, clean and flatten the mounting surface. First, moisten the water pump sealing gasket with coolant. If sealant is required, use it sparingly, as excessive sealant can form flocculent particles in the coolant, potentially causing leaks.

Tighten bolts with moderate force; overtightening may damage parts, while insufficient tightening can cause looseness.

--- Connecting Components

Reinstall the drive belt and the pump cover.

Connect the coolant hoses and battery leads.

Ensure that all connections are properly sealed.

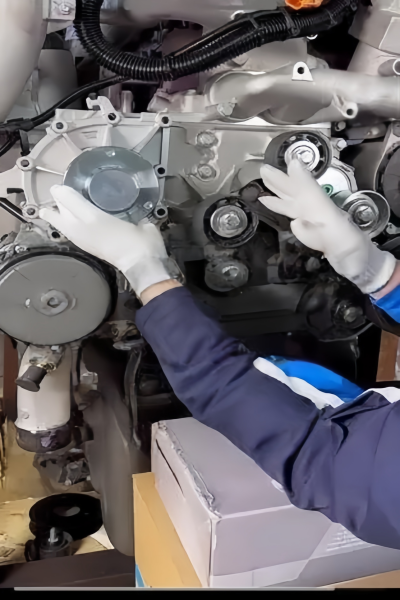

The picture is generated by Baidu AI.

III. Post-Installation Inspection and Testing

--- Initial Inspection‌

Manually rotate the pulley to ensure for smooth operation.

Inspect all connections for leaks.

--- System Testing‌

Start the engine and observe the operation of the water pump.

Check the cooling system pressure.

Monitor the coolant temperature gauge to ensure it displays normal readings.

--- Troubleshooting Common Issues‌

Check for wear on the pump body and pulley.

Inspect the integrity of the pump shaft and impeller.

Examine the condition of seals and gaskets.

IV. Common Installation Errors and Prevention

--- Improper Installation

Incorrectly installed seal seat rings can cause leaks.

Solution: Ensure that all components are installed correctly.

--- Incorrect Bolt Tightening

Too loose may cause instability, while too tight may damage the parts.

Tighten the bolts to the specified torque.

--- Improper Sealing

Uneven application of sealant can cause leaks.

Apply the sealant evenly.

--- Coolant Issues

Contaminated coolant can cause corrosion in the water pump.

Use a high-quality coolant that meets the required specifications.

 --- Improper Belt Adjustment

Too loose, it may slip; too tight, it may damage the bearings.

Adjust the belt to the proper tension.

V. Maintenance Recommendations

Regularly inspect the operation of the water pump.

Check the belt tension every 20,000 km.

Inspect the pump seal every 50,000 km.

Use high-quality coolant and replace it regularly.

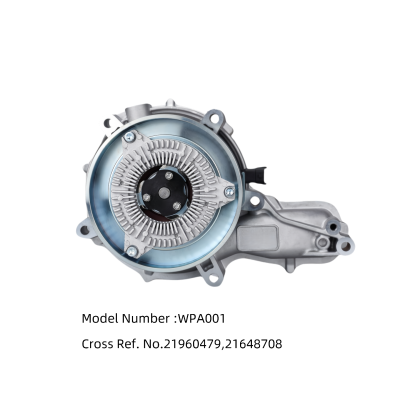

The picture came from www.truckpartsfirst.com

As mentioned above, proper installation and maintenance of truck water pumps can extend their service life and ensure proper operation of the engine cooling system.
